Stereo Cassette Deck (1991-93)
Specifications

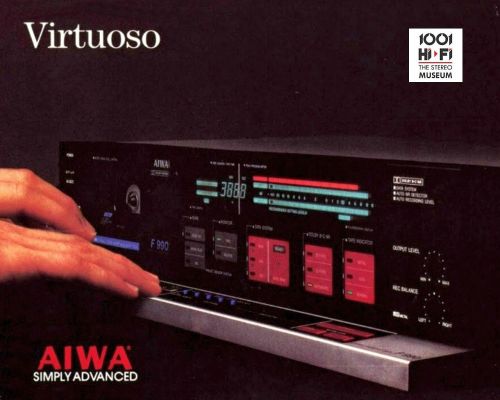

AIWA AD-F990 (1983) - Simply Advanced The fabulous ADF990 is AIWA's most advanced cassette deck (1983), with features that not only ensure simple, foolproof operation, but also unmatched fidelity. Unquestionably the most suprelative 3-head deck in its class (1983), the AD-F990 offers advanced engineering for superior total performance. Find great deals on eBay for aiwa ad-f660. 2 Belts kit for AIWA AD-F660 AD-F770 AD-F990 cassette tape deck player belt set. AWARDS REVIEWS AIWA AD-F810 AD-F410.
Type: 3-head, single compact cassette deck
Aiwa Ad F990 Review New York Times
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record, 1 x playback, 1 x erase
Motor: 1 x DC servo, 2 x DC
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 10Hz to 22kHz (Metal tape)
Signal to Noise Ratio: 80dB (dolby C)
Wow and Flutter: 0.028%
Input: 50mV (line)
Output: 0.475V (line)
Dimensions: 430 x 140 x 318.3mm
Weight: 5.3kg
Aiwa Ad F990 Review Guide
Year: 1991
Downloads
service manual - Ivy Caudieus
Related Catalogues
If you have any problems opening files please read the download FAQ. All files are provided under strict licence and reproduction without prior permission or for financial gain is strictly prohibited.
If you have additional documentation please consider donating a copy to our free archive.
Aiwa Cassette Decks
AD-F880
AD-M600
Reviews
Login or register to post reviews
Reviewed Apr 20th, 2019 by guest
This machine was the best cassette player I ever had !Fantastic sound. I'd like to find a new one.
Reviewed Nov 08th, 2017 by smartengine
Good and with a beautiful, without embellishment sound. Excellent prescribes all types of quality tapes. Excellent amorphous head. Easy-to-maintain mechanism! Out of weaknesses, the weak case of the deck ...
Reviewed Sep 27th, 2017 by scorpione500
Nella mia gioventù ho visto il nascere e morire la compact cassette, di conseguenza ho avuto diverse piastre, come suono e quella che mi ha dato più soddisfazione, su diversi generi musicali.
La manutenzione non è mancata della sostituzione delle cinghie, lubrificazione capstan e sostituzione quasi totale dei condensatori elettrolitici di dubbia qualità.
Comunque le cassette di qualità registrate all’epoca (specialmente dal vinile) con questa piastra e un piacere riascoltarle tutt’ora.
Comments
Product Description
Description
Offering most of the features of the AD-F990, the sophisticated AD-F770 features Dolby HX professional and DATA circuitry, ensuring sound reproduction that out rivals any other model in its class.
From the all-new flat keyboard control panel to the unique all-mode time display, the AD-F770 is the kind of machine you can depend on for the best in cassette performance.
Specifications
Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan
Tape Type: type I, Cr02, Metal
Noise Reduction: B, C
Frequency Response: 20Hz to 20kHz (Metal tape)
Signal to Noise Ratio: 60dB (dolby C)
Wow and Flutter: 0.025%
Total Harmonic Distortion: 1.3%
Input: 50mV (line), 0.3mV (mic)
Output: 0.41V (line)
Semiconductors: 37 x IC, 91 x transistors, 87 x diodes, 19 x LED
Dimensions: 420 x 110 x 280mm
Weight: 5.5kg
Year: 1983
